Sundance Spas New Version Altamar® 880 Heater Circulation Pump Replaced Theramax 02410512-2

Spa Circulation Pump for Sundance® Spas

See Important Note Below)

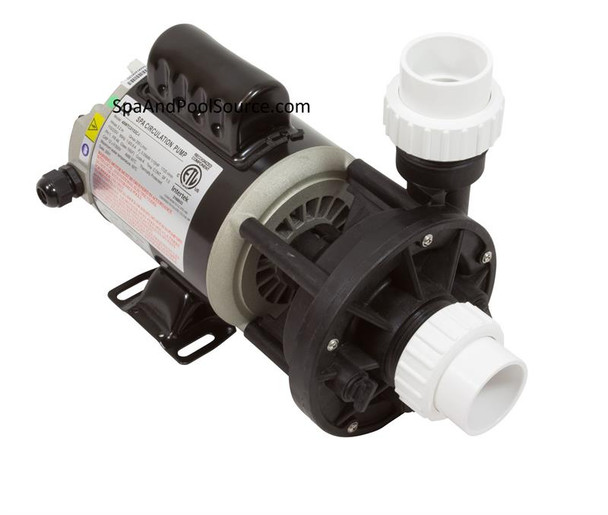

Note: The wet end of the pump is as shown. The pump is sent as shown with the Return at the 12 o'clock position. You will need to turn the wet end to the 3 or 9 O'clock position by loosening the 4 thru bolts and turning the wet end and then retightening the 4 thru bolts.
Used On the Following Sundance® Spa Models:

• 2005-07/18/2011 880 Series: Altamar

Important! Please Note:

• This was the old style 6500-907 pump and is now referred to by part number 6000-907
  • 6500-907 used to be the part number for the this pump until it was changed to 6000-907 on 7/19/2011. On this date, 6500-907 was assigned to a new pump design. If you are looking for the 6500-907 pump for spas manufactured on or after 7/19/2011, be sure to compare your old pump with the image above and the 6500-907 pump image below in Related Products to determine whether you need this pump or the newer 6500-907)! The plumbing between the two pumps is different!
    • Using the wrong pump may require modification to fit your spa!
  • If you have any questions about this pump, please make a visual inspection or send us a picture of your old pump for identification.

Click here for video instructions on replacing your pump!

• 1/12 HP, 230V (old model was 1/15 HP, 230V) operation
• 35 GPM
• 1-½" inlet and outlet for installation. Outside dimension of suction and return: 2 1/4 inch
• 24-hour recirculation pump
• Designed exclusively for portable spas
• Carbon-graphite self-lubricating seal
• High volume volute
• Multiple drains
• Does not come with 6540-171, Hose Barb, must purchase separately see Related Products below.
• Does not come with power cord, use your existing cord.
• Owner's manual link

Replaces the Following Part Numbers:

• 02410512-2 (Sundance)
