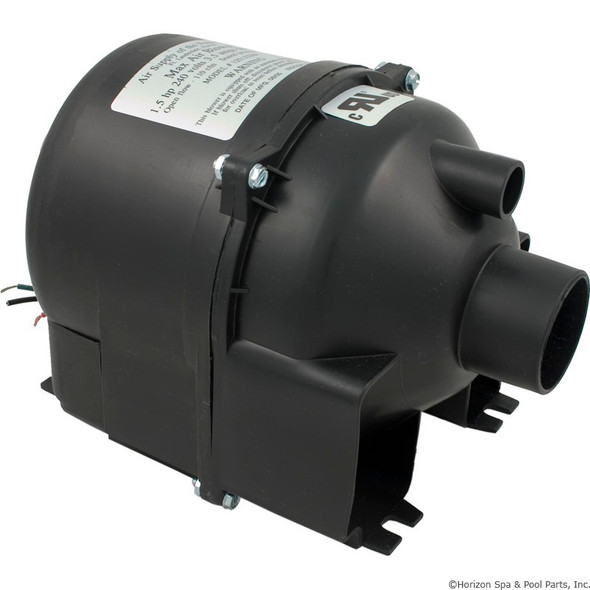

Sundance Spas Air Blower Motor, 230/240 Volt, 1 HP

(No reviews yet) Write a Review

SKU:: 3010056
UPC:
MPN:: 1-15-0002, 35-555-1030

$138.00

Current Stock:

Quantity:

Description

Description

Sundance® Spas Air Blower Motor, 220 Volt 4 Amps, 1 Hp.

Replaces Sundance® Spas Air Blower Motor.. 1 Horsepower Blower Motor. 220/240 Volt. Replaces Sundance® Spas 2 Speed blower motor 6500-103 and 6500-106 up to 2005.
Note: 2005+ Sundance® Spas Models, Sundance® Spas does not sell just a replacement motor for the 6500-148 (used on 2005+ Sundance® Spas and Jacuzzi® Spas, you must purchase the complete blower assembly, see link: http://www.spaandpoolsource.com/maxairblower1hp220240volt24amps-1.aspx

Sorry we do not carry 120 Volt blower motors any longer. Customers kept ordering the wrong blower, a 120 Volt model and then they would hook it up to a 240 Volt line (most spas are 240 Volt, you would need to verify) and burn it up immediately which is not covered under any warranty. There were very few 120 volt blower motors on Sundance and that was back in the 80's and early 90's only and on their small units, not their 800, 850, 880 systems.

Manufacturers can use black, white, green wire color code or blue, brown, green wire for both 120 Volt and 240 Volt Systems. Remember that 240 Volts makes both wires hot. Color code on the 2 wires on the blower motor and the Sundance® Spas wiring are not significant in replacing. They can be hooked up to the 2 wires that the manufacture uses interchangeably. Ground wire hooks to the body of the motor.

Sundance® Spas Models Air Blower Motor was used on:
