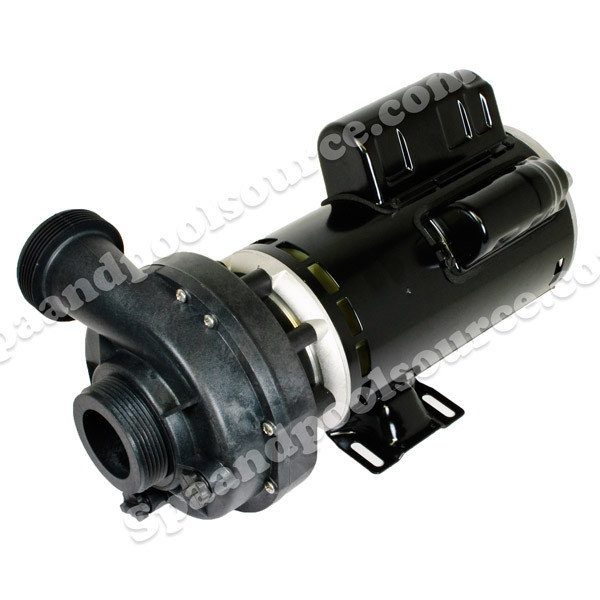

Sundance Spas 6500-260, 6500-760 Spa Pump - 2 Speed 2.5 HP, 4.2 Brake HP

Spa Pump for Sundance Spas

6500-138, 6500-260, 6500-760, 6500-343

Specifications

• 240 Volt
• 2 Speed
• 12.7/3.4 Amp (measured at 4.5 HP). 10.0/3.0 Amps (measured at 4.2/2.5 HP with Sundance/Jacuzzi Wet end)
• 4.2 Brake HP, 2.5 HP continuous duty wetend

New Motor with Sundance/Jacuzzi Piranaha Wet End

Comes Complete with the motor and wet end/pump housing. Does not come with the power cord or Hose Barb 6540-171*

• The Pump is complete with an Emerson (US) Motor. The difference in the Factory Pump and ours is that ours comes with the original welded bracket on the motor instead of the bracket mount currently used by Sundance. Ours replaces the original welded on bracket found in your spa.
• This can be used for other Sundance pumps by adjusting the position of the wet end. Simply loose the rear 4 bolts (this is a thru bolt motor) and turn the wet end to the position of the original pump then retightening the 4 bolts. We send the pump in the 6500-260 position which is the 9:00 position.
• We only use a Viton Seal in our wet ends for long life. The viton seal is designed for harsh chemical environments such as salt, ozone and chemically treated water. Because of their better durability these seals are more costly than a standard seal used by most of our competitors.
• Has the welded foot pedestal on the motor itself. Does not come with power cord.
• * The 6540-171 Hose Barb is used on many of the Sundance/Jacuzzi Pumps (you would need to verify) and was originally made of plastic which eventually fails. Please note that the threads areNOT standard MPT threads and you cannot use an over the counter hose barb (from a Hardware Store). If you do it will strip the threads and cause leakage and ruin the Pump Housing (not covered under warranty). See the Related Products below to purchase this item.

Used in the following Sundance Spas:

• Austin - 1999-2002
• Aruba - 2000-2002
• Capri - 1999-2006
• Cyprus - 2000-2002
• Palermo - 2005
• Telluride - 05/1999-12/1999
• 2005-2009 (end date changes with different models): Sundance Spas went to the 6500-343 on most models listed. The difference is that the pump and motor did not have a welded foot bracket so that the pump would fit any configuration. Pump housings are universal and can be rotated to any configuration. This can be used for other Sundance pumps by adjusting the position of the wet end. Simply loose the rear 4 bolts (this is a thru bolt motor) and turn the wet end to the position of the original pump then retightening the 4 bolts.

Used in the following Jacuzzi Spas:

• All Jacuzzi Series pump housings are universal and can be rotated to any configuration if you have a 48 frame pump used from 2000-2009

Can Be Used For:

This pump can be used for the following pump numbers by rotating the wet end to match the position of the original pump.

• 6500-138
• 6500-254
• 6500-260
• 6500-261
• 6500-268
• 6500-343
• 6500-355
• 6500-754
• 6500-761
• 6500-768
• 06120193-2
• 06125198-2
• S35A9-B (Gatsby Spas)

Wiring Diagrams

Wiring PDF Download

Please Note We include the wiring diagram for your motor which is also on the ID plate of the Motor. The Motors are 240 Volts with 4 wires: Red (High Speed), Black (Low Speed), White (240Volt Common) and Green (Ground). Please note the manufacture of your motor and select the correct wiring diagram. It may vary from your original wiring on your original spa motor.

Single Speed Use: This 2 speed pump is used as the primary pump but can be used as a single speed. If you need it to run as a single speed, then you would would not hook up the low speed wires. Hook up the Black (High Speed) and the White (240Volt Common).

More Information

Important: The parts from this pump are not compatible to the Theramax/Theraflo/Aquaflo Pump used in 1997-1998. If yours was the Aquaflo pump used in this time period and you are wanting parts for replacement, you must use the parts listed here.
