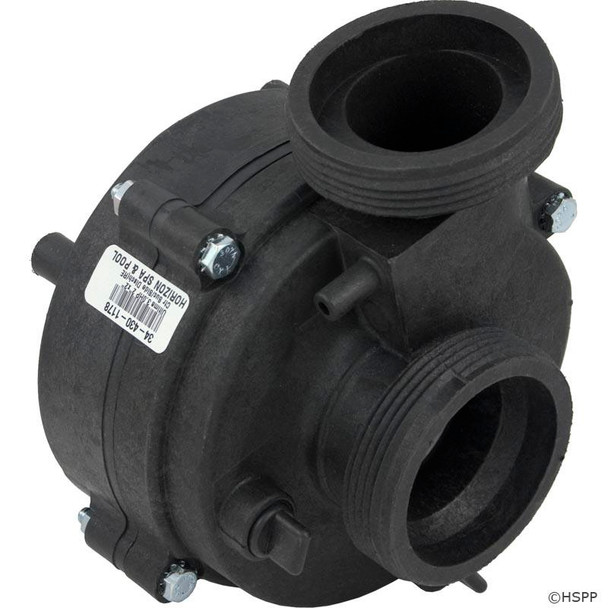

Vico Wet End 1215132 Ultima 2 HP 2"x2" Center Suction, Side Discharge
(No reviews yet)
Write a Review
- SKU:
- 2315121
- MPN:
- 2315121
Description
Vico Wet End, Ultima 2 HP 2"x2" Center Suction, Side Discharge, 48 Frame
Used on Sundance Spas Ultra Jet 1994-1996
Pump plumbing sizes are nominal, and not actual outside diameter (OD) of the threaded intake and/or discharge. Use a tape measure and check your old pump thread size against the sizing table
Plumbing Size Pump Thread OD (approx.)
1.5" 2-3/8"
2.0" 3"
2.5" 3-5/8"
| Pump to Motor Foot Types | 1a |
| Wet End Complete | Complete Wet End |
| Drain Plug Location | 6 o`clock |
| Suction Connection Size | 2" |
| Suction Auxillary Port | 3/8" barb (b) 1ea. |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Connection Size | 2" |
| Suction Connection (Physical Dimension) | 3-1/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Operational Horsepower | 2.0hp |
| Suction Pipe Size | 2" |
| Discharge Auxillary Port | 3/8" barb (b) 1ea. |
| Discharge Style | Side |
| Motor Frame | 48 Frame, 48 Frame Thru-Bolt |
| Discharge Connection (Physical Dimension) | 3-1/16" od |
| Discharge Pipe Size | 2" |
| Manufacturer | Vico/Balboa |
| Horsepower | 2.0hp |
| Spa Pump Model | Ultima |
| Manfufacturer Impeller Number | 1212218 red |
| Pump Model | Ultima |
| Volute Fastening Type | 4 Bolts |
| Volute/Sealplate Number | 1211008 |
Related Products
Related Products
Vico Wet End Ultima 3.0HP 2"x2" Center Suction, Side Discharge, 3" OD Fittings
$173.41
Vico Wet End, Ultima 3.0HP 2"x2" Center Suction, Side Discharge.Used on Sundance® Spas Ultra Jet 1994-1996

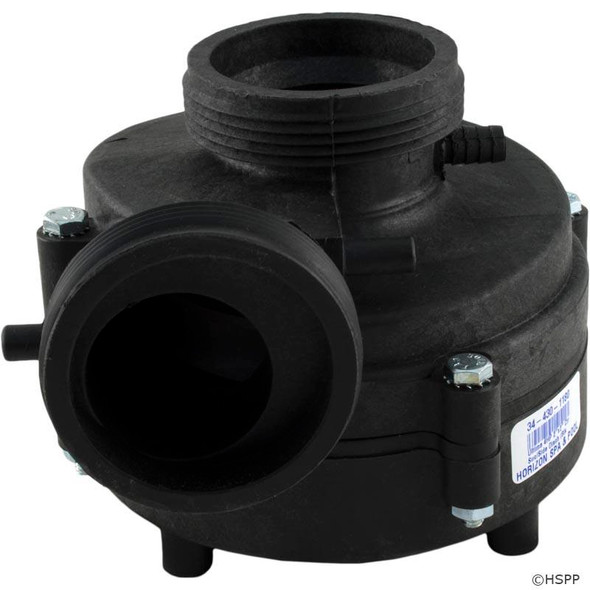

Vico Wet EndUltima 4HP 2"x2" Center Suction, Side Discharge
$174.00
Vico Wet End, Ultima 4HP 2"x2" Center Suction, Side Discharge (Blk/Green/Red)
Product Description
Old style Vico color coding for
Vico Wet End Ultima 1.0HP 1.5"x1.5" Center Suction, Side Discharge
$164.00
Vico Wet End, Ultima 1.0HP 1.5"x1.5" Center Suction, Side Discharge
Old Style color coding for this impeller was black
Pump plumbing sizes are nominal, and not actual outside diame
Vico Wet End Ultimax 2HP, 2" Center Suction, 2" Side Discharge
$173.41
Vico Wet End, Ultimax 2HP 2"x2" Center Suction, Side Discharge. New Vico Wet end
Old style Vico color coding for this impeller was Red. New Ultimax impeller is 1212230 green/brown/red stripedParts

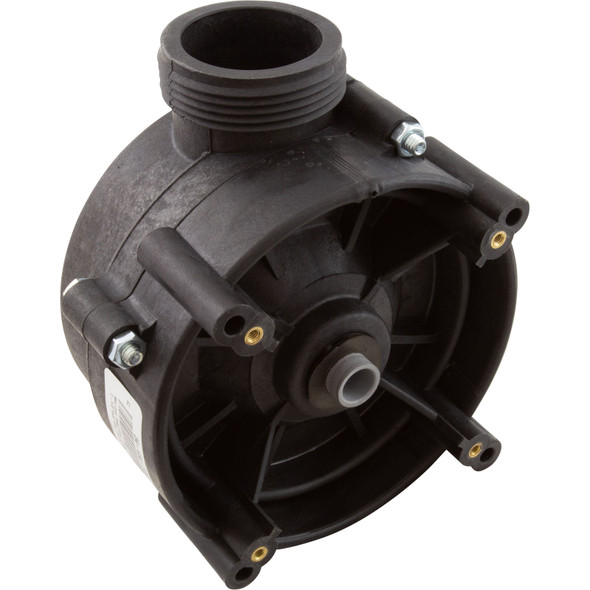

Vico Wet End Ultima 1.0HP 1.5"x1.5" Center Suction, Center Discharge (BLACK)
