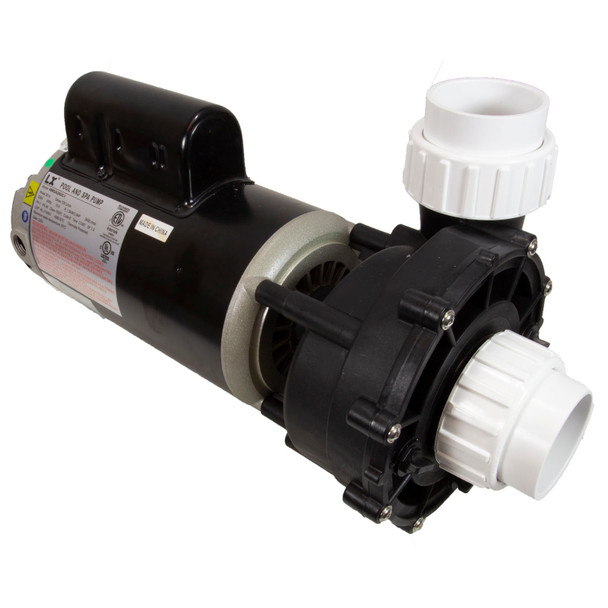

Sundance Spas 6500-091 OEM LX Spa Pump - 1 Speed, 2.5 HP

6500-091 OEM 1-Speed NB1 LX Pump 2014+

• Can Retrofit spas with older 6500-341 design 2014+
• May need slight adjustment to plumming to fit
• 6000-532 bracket sold seperatly
• 48 Frame
• 1-Speed, 2.5hp
• LX Series Pump

In July of 2014, Sundance changed their primary supplier for 48-frame jet pumps. The new pumps offer the same output, quality, and reliability standards as the older (OEM) 48-frame jet pumps.

This new 48-frame jet pump can retrofit most existing spas using this pump size with minor alignment adjustments. However, these jet pumps may not be compatible with all spas manufactured prior to July 2014 since they vary in size and shape from their older predecessors. As an example, the illustration (above) shows the size differences between the new 6500-091 jet pump and an older 6500-343 jet pump. This size variation can make installation challenging in some cases. For this reason, Sundance continues to offer a limited supply of older 48-frame jet pumps to service the few applications where the new pumps will not fit.
