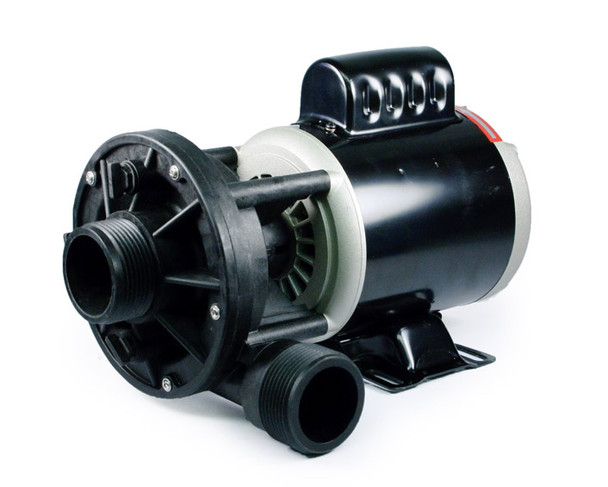

Sundance Spas Spa Pump Replacement for Aqua-Flo Circ Master 1/15 HP 115/230 Volt (48WTC0153C-I)

*FREE Standard Ground Shipping on this item with a $4.95 handling fee on all orders (Contiguous U.S. Only). Please see our Shipping Policy!

LX Circulation Pump 48WTC0153C-I replaces the Spa Circulation Pump for Sundance® and Jacuzzi® Spas and Aqua Flo/Gecko 1/15 HP 230 Volt pump (see Models and Years below)

Please note prior to ordering: This Pump will replace the Aqua Flo Circulation Pump used on Sundance and Jacuzzi Spas. It is an identical match (except for wiring configuration) and will replace the Aqua Flo with no issues. The Pump is a convertible pump and will operate at either 115 Volt or 230 Volt. We send it in the 230 Volt configuration. If your original pump was a 115 Volt pump, then you would need to change the wiring for 115 Volts by using the diagram on the side of the pump or see wiring diagram above.
(Sundance/Jacuzzi Brands uses a 230 Volt pump)
See pictures above for wiring diagram. Note on 230 Volt  your two leads use the 1 and 4 terminal. DO NOT Follow the wiring diagram on the side of the pump.The diagram is incorrect as to the position of the terminals. Use the #1 and # 4 terminal  to connect to.
The pump is sent with the wet end in the position as shown above. It can be turned to the upright position (12 o'clock position) by unscrewing the 4 thru bolts on the motor and turning the wet end and then retightening the 4 thru bolts

Part Numbers: 6000-907, 02093001-2, 6500-907 (See Important Note Below)

Important! Please Note:

• This was the old style 6500-907 pump and is now referred to by Sundance as part number 6000-907. Our part number is 48WTC0153C-I

  6500-907 used to be the part number for the this pump until it was changed to 6000-907 on 7/19/2011. On this date, 6500-907 was assigned to a new pump design. If you are looking for the 6500-907 pump for spas manufactured on or after 7/19/2011, be sure to compare your old pump with the image above and the 6500-907 pump image below in Related Products to determine whether you need this pump or the newer 6500-907)! The plumbing between the two pumps is different

• Using the wrong pump may require modification to fit your spa! If you have any questions about this pump, please make a visual inspection or send us a picture of your old pump for identification.

Click here for video instructions on replacing your pump!

• 1/8 HP, 230 Volt .8 Amps operation.

• 35 GPM

• 1-½" inlet and outlet for installation. Comes with Pump Unions and Orings

• 24-hour recirculation pump

• Designed exclusively for portable spas

• Carbon-graphite self-lubricating seal

• High volume volute

• Multiple drains

  Pump comes with 90 Days warranty.

Used On the Following Sundance Spa Models:

Also Used on the Following Jacuzzi® Spa Models:

• J-400, 2006-5/4/2011, J-LX/LXL

Replaces the Following Part Numbers for 230 Volt Pumps:

• 02093001-2

• 02093678-2

• 02093759-2

• 02093639-2

• 02408492-2510

• 02093006-2

• 02093466-2

• 02093658-2

• 02093

• 02093695-2

• 02093649-2

• 02407002-2

• 02093002-2

• 02408492-2

• Wet End must be turned to the 9 o'clock position

• 02093004-2

• 6000-907

• 9352-9303-A

• k55mygrd-8367 (Emerson Motor part number)

• 02410512-2 (Sundance)


  Replaces the Following Part Numbers for 115 Volt Pumps:

• X321790
• 02093637-2
• 02093460-2
• 02410133-2
• 02093636-2
• 02410362-2
• 02093644
• 321810
