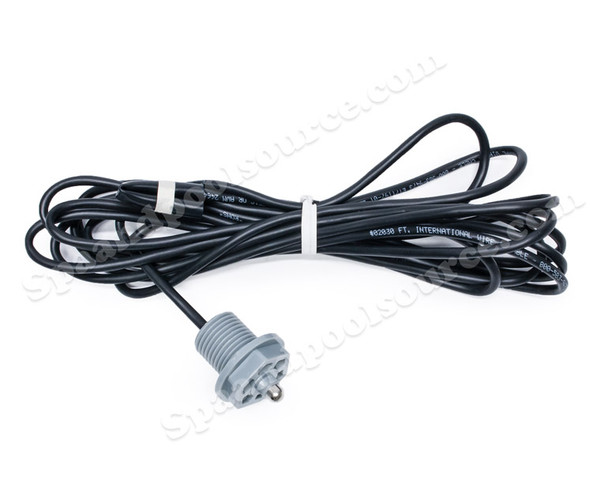

Sundance® Spas, Jacuzzi® Spas Temperature Sensor with Box End Connectors.

Use with 8820456 Oring (sold separately, see below in related products.)

Used on these Sundance® Spas:

2012- 2015 Aspen® 880 Series
2005-2015 850, 880 Series : Maxxus®, Optima®, Cameo®, Majesta, Altamar®, Marin®, Capri®, Aspen®
1997-2005 400,600,600-S, 750, 800 and 850 Series: Suntub SV/DV, Tango, Rio, Montego, Calypso 1 & 2, Tango, Corum, Maxxus®, Optima®, Cameo®, Majesta, Altamar®, Marin®, Capri®
1996 650/850 Series: Calypso 1, Royale, Corum, Maxxus®, Optima®, Cameo®, Majesta, Altamar®, Marin®, Capri®
1996 400, 650 Series: Tango, Suntub DV & SV, Montego, Rio, Calypso 2, Optima®, Maxxus®, Marin®, Corum, Capri®, Cameo®
1995 850 Series: Royale, Optima®, Maxxus®, Marin®, Corum, Capri®, Cameo®
1993-94 600, 800 Series: Royale, Maxxus®, Marin®, Capri®, Cameo®
1993-94, 1996 400/400LX Series: Tango, Rio, Montego, Calypso 1
1992 Suncoast Series: Tango, Rio, Montego, Calypso, 4/96-4/98 Suntub SV/DV Systems
1992 800FS Series: Royale, Maxxus®, Marin® 32, Marin® 29, Cameo®, Allegro
1992 600S Series: Allegro
1992 600S Series: Royale, Maxxus®, Marin® 32, Marin® 29, Cameo®
1991 800 FS Series Models: Supra Lounger, Royale, Marin®, Los Cabos, Gemini, Cameo®, Cabaret
Replaces 6600-134, 6600-138 and 6600-105 (not shown).
Interchangeable with 6600-182 sensor (stainless steel) with box end connectors.
For Inground Spas (spas with remote equipment with no skirt) see 6600-169

Used on the following Jacuzzi® Spas models:

2002+ J-300 LCD Series
2002-2003 J-350, J-360, J-380
2004-2006 J-355, J-365, J-375, J-385
All 2005-2009 J-400 Models

Location of Temp Sensor: The Temp Sensors are located in the filter compartment on the side. They are unscrewed from the inside of the tub and the wire is fed through a tube into the equipment compartment. Follow the wire to the PC Board. To feed the new sensor, we usually drain the tub below the hole and pull the old sensor out a couple of feet into the tub, cutting the old sensor head off, we tie on the new sensor (connector end) to the old wire and pull the wire through into the equipment compartment.
Diagnostic and Installation: The connectors on the Temp Sensor are attached to a pc board connector that is located on the PC Board (usually at the top). See these instructions for Diagnostic and Installation: http://www.spaandpoolsource.com/sundancespastemperaturesensordiagnostic.aspx

Please note: The color code on the wires have no significance, you can hook the wires up either way.
These sensors are interchangeable with the 6600-166 except for the end connector which does not connect into the 6600-167 harness. (would have to strip wires back and wire nut together.)
