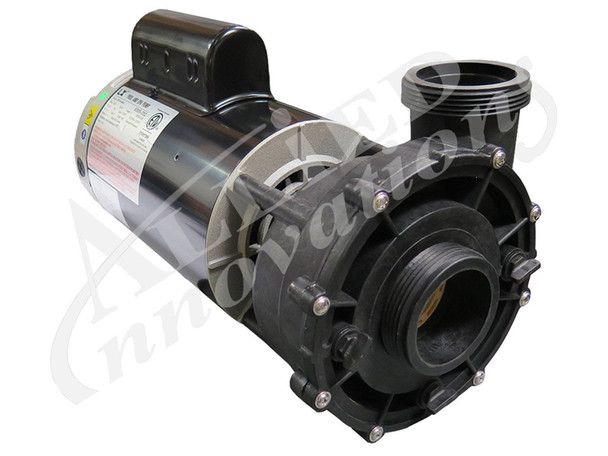

6500-352, Spa Pump Replacement for Sundance® Spas & Jacuzzi® Spas: 4.0HP 230 Volt, 12 Amp, 1 Speed.

Specifications

• LX Series Pump, bracketless Sundance Spas

• 240 Volt

• 1 Speed

• 4.0 HP

• 56 Frame

• Inlet and Outlet measures 3 inch outside diameter. This is for 2 inch Unions. Front Face plate measures 7.5 inch
  Comes with Pump Unions and Orings


• Takes the place of the 6500-341 in Mid 2010 for 680/780 Sundance® Series and Jacuzzi® Spas (see below)

Can be used on the following Sundance® Spa Models: Please verify that the pump wet end position will work in your spa, see Notes in Red above!

• Aspen®, June 2009+ (2 each)

• Altamar, 2012+ (2 each)

• Bristol, 2017+ (2 each)

• Cameo®, August 2008+ (2 each)

• Capri®, January 2009+

• Chelsee®, Hamilton, Hartford, Hawthorne: Mid year (05/2010 change: 680/780 Series Pump/Motor changed from 48 Frame 6500-341 to 56 Frame 6500-352 (requires (1) 6500-352, the other jet pump is 6500-367)

• Claremont, 2017+ (2 each)

• Edison®, 2013+,  requires (1) 6500-352, the other jet pump is 6500-367

• Hamilton 05/2010+

• Hanover, 2017+ (2 each)

• KIngston, 2017+ (2 each)

• Majesta®, June 2009+ (2 each)

• Marin®, January 2009+ (2 each)

• McKinley, 06/2014+ (requires (1) 6500-352, the other jet pump is 6500-367)

• Montclair, 04/2013+ (requires (1) 6500-352, the other jet pump is 6500-367)

• Maxxus, 2009+ (2 each)

• Optima®, 8/2008 (2 each)

• Peyton, 2012+ (requires (1) 6500-352, the other jet pump is 6500-367)

• Ramona®, 06/2014+ (requires (1) 6500-352, the other jet pump is 6500-367)

• Victoria, 2011+ (requires (1) 6500-352, the other jet pump is 6500-367)

This can take the place of the 6500-901, 6500-902, and 6500-903 pumps. However, you may need some modification to retrofit this pump if the 901, 902, or 903 was used. For these part numbers, we recommend and offer the original pumps. See below in Related Products.

Used on the Following Jacuzzi® Spa Models:

• 2012 and Newer:

• J-XL®, J-LXL® (Pump 2)

• J-465 (Pump 2)

• J-335, J-355, J-365, J-375 (Pump 2)

• J-235, J-245, J-270, J-275, and J-280 (Pump 2)

• J-470, J-480 (Pump 1)

• J-425, J-495 (Pumps 1 and 2)

• August 2010-2011:

• J-XL®, J-LXL® (Pump 2)

• J-480, J-470, J-465, J-460 (Pump 2)

• J-375, J-365, J-355 (Pump 2)

• J-280, J-270

• 2007-July 2010

• J-480, J-470, J-465, J-460

• Replaced pump 6500-341 (48F) in July 2010+ for J-300/J-200 Series

Notes:

**Pump manufacturers reserve the right to change motors on pumps without notice. Motors shown may differ from current stocked product. Form and functionality remain the same**

*FREE Standard Ground Shipping on this item with a $4.95 handling fee on all orders (Contiguous U.S. Only). Please see our Shipping Policy

Visit our Facebook page for a how-to video on replacing the Jet Pump in your Sundance® Spa

For All Sundance® Pumps, Click Here!
