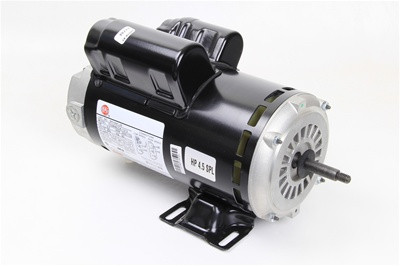

Spa Motor by US Motors, Emerson - 48 Frame, 240v, 2-Speed, 2-4.5 HP

(No reviews yet) Write a Review

SKU:: 1-20-0006B
UPC:
MPN:: 1-20-0006B

$547.00

Current Stock:

Quantity:

Description

Description

Spa Motor by US Motors (Emerson) 48 Frame, 240 Volt, 2 Speed 2-4.5 HP. Replaces the Sundance® Spas Emerson Motor used from 1999-2010 with 48 Frames (excludes 2005+ 880 Series, any LX or 56 Frame)

Catalog number: Model number: T55MWCBB-1185. Other part numbers used: SPH25FL2S, T55MWCCK-1213, T55MWCCE-1208, T55MWCCE1208
US Motors (formerly Emerson) T55MWCBB-1185 has been labelled by spa manufacturers as 2.0, 2.5, 3.0, 3.5, 3.6, 4.0, 4.5 HP. They would use this motor since the HP value came from the impeller or Wet end.
This Motor is also the replacement for The Century BN62, Franklin 42005

High Speed: 12.7 Amps, Low Speed: 3.4 Amps
Amp draw will vary with the size of HP of impeller.
Overall length: 11 3/16 inches (not including motor shaft)
Height: 8 inches (top of larger capacitor)
This motor is widely used by Waterway, Sundance® Spas, Jacuzzi® Spas and other spa manufacturers

This motor can replace Sundance® Spas, Jacuzzi® Spas 48 Frame Motors 2.0-4.0 HP, 2.5-4.2HP and the 3.6HP 240 Volt
This Motor can replace the motor used on the following Sundance® Spas pump numbers:
6500-261, 6500-254, 6500-268, 6500-260, 6500-264, 6500-262, 6500-257, 6500-265, 6500-761, 6500-754, 6500-768, 6500-760, 6500-764, 6500-762, 6500-757, 6500-765
6500-343, 6500-345,6500-355. Current pump number used.
Cross reference: will replace T55-MWBRF-1046, BN62, 42005

Wiring PDF Download

NOTE: Not used on these Aquaflo pumps that were a 56 Frame 1997-1999:6500-128, 6500-132, 6500-134, 6500-137, 6500-138, 6500-754

Used on Waterway pumps and replaces motor for this model of pump: PF452N22C4 3421821-1A
