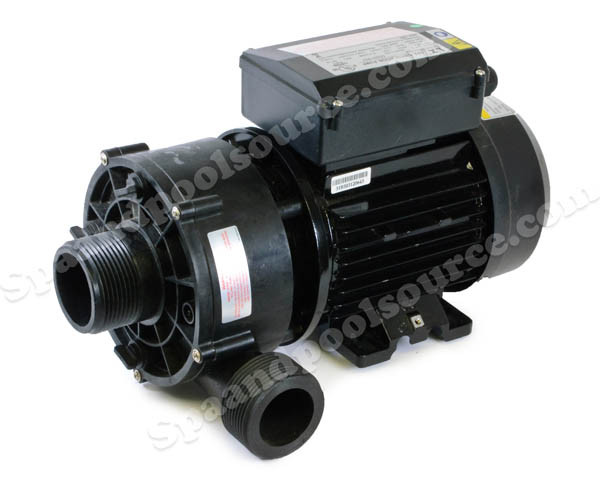

Sundance Spas New Version 6500-907 LX Circulation Pump 220-240 Volt (WTC50M) 2011+

*FREE Standard Ground Shipping on this item with a $4.95 handling fee on all orders (Contiguous U.S. Only). Please see our Shipping Policy!

LX Spa Circulation Pump WTC50M. Used on various spas, hot tubs and jetted baths. Also used on Sundance® and Jacuzzi® Spas part number 6500-907, 6500-913
The pump wet end comes in the postion that Sundance and Jacuzzi uses but can be turned to a different position simply by loosening the 4 bolts that hold on the wet end (7m) and turn the wet end to the postion you need (12:00, 3:00, 6:00 or 9:00 o'clock). The bolt pattern for mounting the pump to your base, may be different for non Sundance/Jacuzzi usuage from your old pump that you are trying to replace. The bolt spacing from same side is 3 inches, your pump may have varied from a different design and you may have to accomadate the bolt spacing for this pump.

Important! If using on Sundance, Jacuzzi Spas please note:

• This is the new style 6500-907, 6500-913 pump that Sundance and Jacuzzi are using.


• 6500-907 used to be the part number for the older Aqua-Flo Circulation Pump (now 6000-907). However, on 7/19/2011 the Aquaflo's part number was changed to 6000-907 and this pump became the new 6500-907. This 6500-907 is a different design than the old 6500-907! If you are looking for the 6500-907 pump for spas manufactured on or before 7/18/2011, be sure to compare your old pump with the image above and the Aqua-Flo image below in Related Products to determine whether you need this pump or the older Aqua-Flo (6000-907)! The plumbing between the two pumps is different!

• Using the wrong pump may require modification to fit your spa!

• If you have any questions about this pump, please make a visual inspection or send us a picture of your old pump for identification.

Details:

Click here for video instructions on replacing your pump!

• LX Spa Circulation Pump

• Model: WTC50M

• 35 GPM

• 1/15 HP

Used On the Following Sundance® Spa Models:

• 2017 + 980 Claremont, Kingston
• 2017+ 780 Bristol, Hanover
• 03/2013+ 780 Hamilton, Chelsee
• 04/2013+ 780 Montclair
• 07/19/2011+ 880 Series: Altamar, Cameo, Capri, Majesta, Marin, Maxxus, Optima
• 07/19/2011 Select Series: Constance, Victoria
• 04/2013-03/2017 780 Certa
• Does not come with 6540-171, Hose Barb, must purchase separately see Related Products below.

Used on: 7/19/11-present on Jacuzzi J-400 Series,
