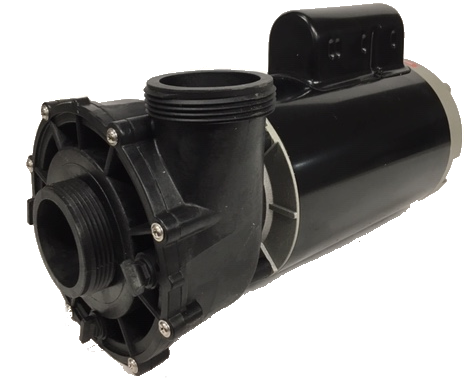

Spa Replacement Pump for Sundance® Spas & Jacuzzi® Spas 2009+ LX Pump 56WUA400-II, 6500-367

LX Spa Pump 56WUA400-II, 2.5 HP (4 BHP)56 Frame, 230 Volt, 2 Speed
Same Manufacture as used by Jacuzzi Brands, Sundance Spas, we remove the welded base for ease of replacement in your spa that uses the 6000-535  Mounting Bracket (Shown in picture above with mounting bracket, Sold Separately). See below in Related Products.

Specifications

• LX Series Pump

• 240 Volt

• 2 Speed

• 2.5 HP (4.0 BHP)

• 56 Frame

• Does not include Motor Bracket (part number 6000-535)

• Replaces the 6500-343 in August 2010 for 780/680 Series and Jacuzzi Series (see below)

Used on the following Sundance® Spa Models:

• Burlington 08/2010+

• Camden 08/2010+

• Certa 08/2010+

• Chelsee 08/2010+ (1 pump required, other jet pump is a  6500-352)

• Constance, 2011+ (1 pump required, other jet pump is a  6500-352)

• Edison, 2013+ (1 pump required, other jet pump is a  6500-352)

• Hamilton 08/2010+ (1 pump required, other jet pump is a  6500-352)

• Hartford, Hawthorne 05/2010-05/2014

• McKinley, 06/2014+  (1 pump required, other jet pump is a  6500-352)

• Montclair, 04/2013+ (1 pump required, other jet pump is a  6500-352)

• Peyton 2012+ (1 pump required, other jet pump is a  6500-352)

• Ramona 06/2014+ (1 pump required, other jet pump is a  6500-352)

• Vicotria, 2011+ (1 pump required, other jet pump is a  6500-352)

Used on the Following Jacuzzi® Spa Models:

• All Years J-LX, J-LXL


• J-375 2010+


• J-365 2010+


• J-355 2010+


• J-345 2010+


• J-335 2010+


• J-280 2010+


• J-270 2010+


• J-230 2010+


Notes:

This Replaces the  LX Pump from Sundance Spas and Jacuzzi Spas. If using on spa models prior to dates given in the applications chart, there may need to be some plumbing modifications made.

More Information

*FREE Standard Ground Shipping on this item with a $4.95 handling fee on all orders (Contiguous U.S. Only). Please see our Shipping Policy!

Visit our Facebook page for a how-to video on replacing the Jet Pump in your Sundance Spa
